Magnets can help AI get closer to the efficiency of the human brain



Computers and artificial intelligence continue to usher in major changes in the way people shop. It is relatively easy to train a robot’s brain to create a shopping list, but what about ensuring that the robotic shopper can easily tell the difference between the thousands of products in the store?

Purdue University researchers and experts in brain-inspired computing think part of the answer may be found in magnets. The researchers have developed a process to use magnetics with brain-like networks to program and teach devices such as personal robots, self-driving cars and drones to better generalize about different objects.

“Our stochastic neural networks try to mimic certain activities of the human brain and compute through a connection of neurons and synapses,” said Kaushik Roy, Purdue’s Edward G. Tiedemann Jr. Distinguished Professor of Electrical and Computer Engineering. “This allows the computer brain to not only store information but also to generalize well about objects and then make inferences to perform better at distinguishing between objects.”

Roy presented the technology during the annual German Physical Sciences Conference in Germany. The work also appeared in the Frontiers in Neuroscience.

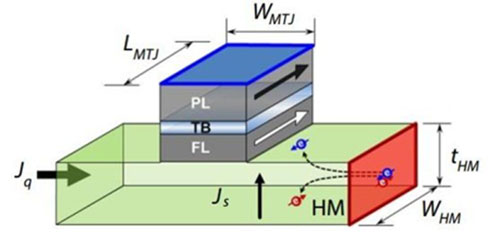

The switching dynamics of a nano-magnet are similar to the electrical dynamics of neurons. Magnetic tunnel junction devices show switching behavior, which is stochastic in nature.

The stochastic switching behavior is representative of a sigmoid switching behavior of a neuron. Such magnetic tunnel junctions can be also used to store synaptic weights.

The Purdue group proposed a new stochastic training algorithm for synapses using spike timing dependent plasticity (STDP), termed Stochastic-STDP, which has been experimentally observed in the rat’s hippocampus. The inherent stochastic behavior of the magnet was used to switch the magnetization states stochastically based on the proposed algorithm for learning different object representations.

The trained synaptic weights, encoded deterministically in the magnetization state of the nano-magnets, are then used during inference. Advantageously, use of high-energy barrier magnets (30-40KT where K is the Boltzmann constant and T is the operating temperature) not only allows compact stochastic primitives, but also enables the same device to be used as a stable memory element meeting the data retention requirement. However, the barrier height of the nano-magnets used to perform sigmoid-like neuronal computations can be lowered to 20KT for higher energy efficiency.

“The big advantage with the magnet technology we have developed is that it is very energy-efficient,” said Roy, who leads Purdue’s Center for Brain-inspired Computing Enabling Autonomous Intelligence. “We have created a simpler network that represents the neurons and synapses while compressing the amount of memory and energy needed to perform functions similar to brain computations.”

Roy said the brain-like networks have other uses in solving difficult problems as well, including combinatorial optimization problems such as the traveling salesman problem and graph coloring. The proposed stochastic devices can act as “natural annealer,” helping the algorithms move out of local minimas. Their work aligns with Purdue’s Giant Leaps celebration, acknowledging the university’s global advancements in artificial intelligence as part of Purdue’s 150th anniversary. It is one of the four themes of the yearlong celebration’s Ideas Festival, designed to showcase Purdue as an intellectual center solving real-world issues. Roy has worked with the Purdue Research Foundation Office of Technology Commercialization on patented technologies that are providing the basis for some of the research at C-BRIC. They are looking for partners to license the technology.

Purdue University researchers have developed a process to use magnetics with brain-like networks to program and teach devices to better generalize about different objects.



yogaesoteric
December 16, 2019
